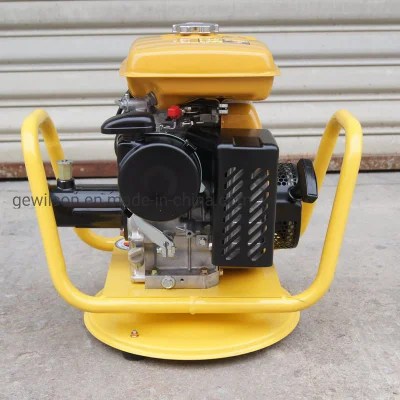

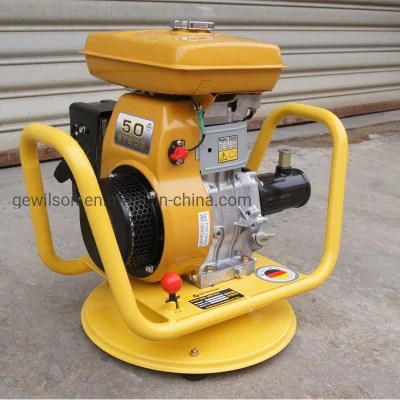

The VMG Series are Viber® Gasoline Power Units, which connect to standard flex drives (shafts) and vibrating heads used in concrete construction
VMG Models use Four-Cycle Gasoline Engines to produce up to 12,670 rpm and 2.5 horsepower. Four-Cycle motors use unleaded gasoline – no mixing of oil and gas is necessary. The VMG-2500BP develops 2.5 horsepower and is compatible with shaft lengths up to 35′ (10.7 m) (or longer if care is used to prevent tight bends in the flex drive) and heads up to 2½” (63.5 mm) diameter.
The largest Vibrator Head of 2½” attached to the VMG-2500BP model produces an output of 1,874 force pounds (8.34 kN), with a Radius of Action of 24″ (610 mm), and a .08″ (2 mm) Amplitude Peak-to-Peak. Please review the performance data for details.
Viber Head Performance with VMG Gasoline Power Units
Viber VMG Gasoline Performance-Data
All VMG models connect to Viber’s standard flexible shafts and vibrating heads and are fully interchangeable with our electric or pneumatic vibrators; unlike competitors′ gasoline vibrators which may require special flex-drives or connectors.
This provides exceptional flexibility and greatly reduces the amount of the contractor’s inventory.
